Product BI1.5-EH6.5-0.2-Q20-2LU-H1141/S950
Inductive Sensor
For Material Recognition

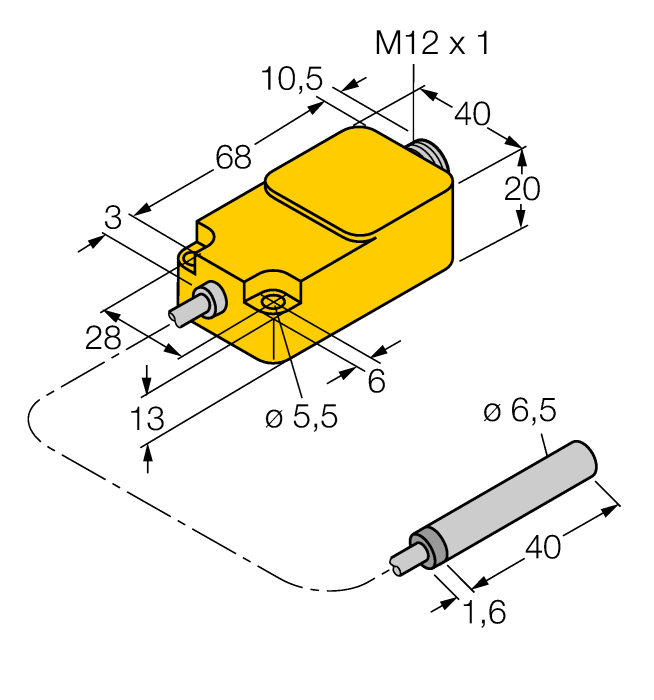

Order number: 1533010- Smooth barrel, Ø 6.5 mm
- Stainless steel, 1.4427 SO
- Analog
- 1 x analog output for amplitude evaluation
- 1 x analog output for phase evaluation
- M12 x 1 male connector
General data
| EAN | 4047101248722 |
| eCl@ss-Code (V5.1.4): | 27270802 -/- Indcutive distance sensor |
| Customs tariff number | 85365019900 |
| Country of origin | DE |
| Weight | 94 g |
Technical Data
| Design | Smooth barrel |
| Construction size | Ø 6.5 mm |
| Mounting conditions | Flush |
| Operating voltage | 15…30 VDC |
| Output function | Analog output |
| Voltage output | 0…10 V |
| Electrical connection | Connector, M12 × 1 |
| Cable length | 0.20 m |
| Housing material | Stainless steel, 1.4427 SO |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
| Special features | Differentiation of metals |
Connectivity accessories
|
PKGV3M-2/TEL
Connection cable, M8 female connector, straight, 3-pin, stainless steel coupling nut, cable length: 2 m, jacket material: PVC, black; cULus approval |
6625385 |
