Product BIM-KST-AP6X
Magnetic Field Sensor
For Pneumatic Cylinders
Order number: 46740- Rectangular, height 17 mm
- Front active face
- Metal/plastic, GD-Zn/Al/PA12-GF30
- Magnetic-inductive sensor
- DC 3‐wire, 10…30 VDC
- NO contact, PNP output
- Cable connection
General data
| EAN | 4047101103540 |
| eCl@ss-Code (V5.1.4): | 27270104 -/- Magnetic inductive proximity switch |
| Customs tariff number | 85365019000 |
| Country of origin | PL |
| Weight | 119 g |
Technical Data
| Design | Rectangular |

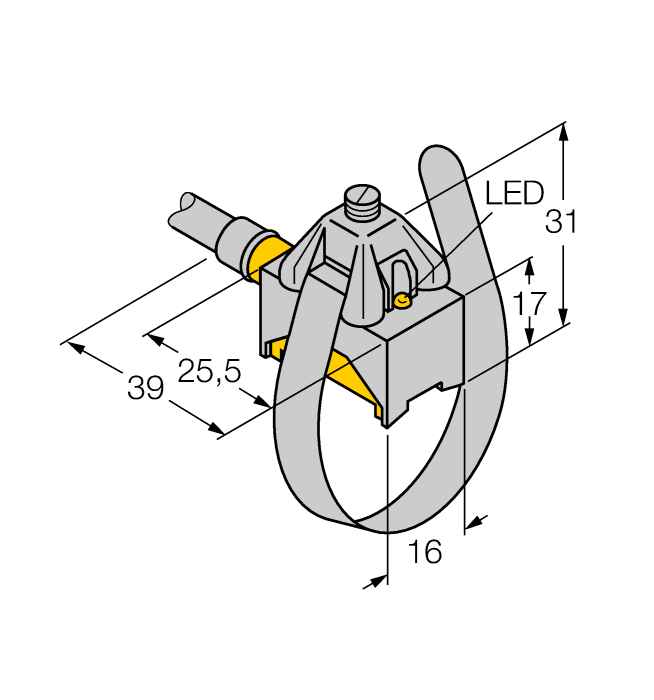

| Construction size | 37 x 16 x 17 mm, KST |
| Cylindrical design | Round cylinder |
| Operating voltage | 10…30 VDC |
| Output function | NO contact, PNP |
| Electrical connection | Cable |
| Cable length | 2.0 m |
| Housing material | Metal/plastic, GD-ZN/Al/PA12-GF30 |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
