Product FCI-D03A4P-NA
Flow Monitoring
Inline Sensor without Integrated Processor
Order number: 6870637- Flow sensor for liquid media
- Calorimetric principle
- Adjustment via potentiometer on processor
- Status indicated via LED chain on signal processor
- Sensor housing made of Delrin

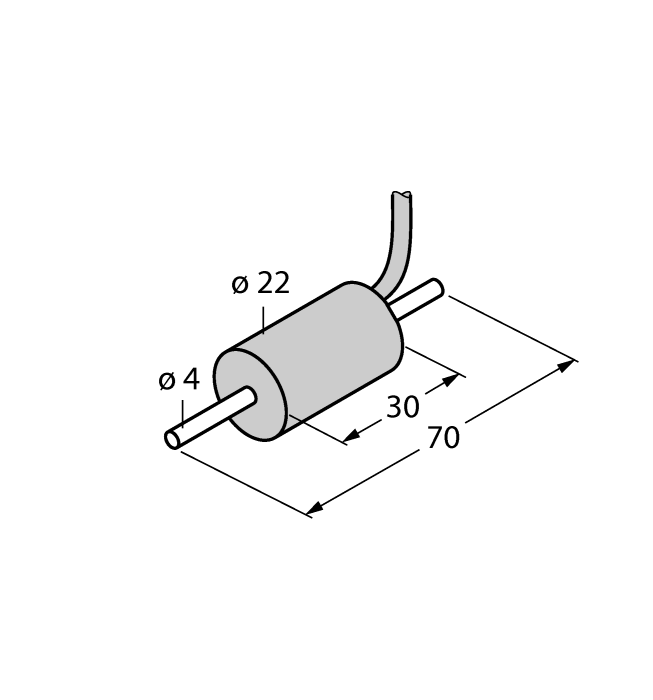

- Mechanical Connection: Barrel, 4 mm
- Cable device
- 4‐wire connection to the processor
General data
| EAN | 4047101174564 |
| eCl@ss-Code (V5.1.4): | 27273190 -/- Flow meter (not classified) |
| Customs tariff number | 90261021000 |
| Country of origin | DE |
| Weight | 133 g |
Technical Data
| Function | Flow monitoring |
| Design | Inline |
| Process connection | Barrel 4 mm |
| Medium | liquids |
| Detection type | Calorimetric |
| Electrical connection | Cable |
| Cable length | 2.0 m |
| Sensor material | Stainless steel |
| Housing material | Plastic, Delrin |
| Medium temperature | -5…+70 °C |
| Ambient temperature | -20…+70 °C |
| Protection class | IP68 |
Functional accessories
|
FM-IM-3UP63X
Signal processor for non-Ex flow sensors from the FC….-NA… family; operating voltage 20…30 VDC; LED bar for displaying flow speed and medium temperature; IO-Link device with transistor outputs for flow, temperature and errors |
7525100 |
|
|
FM-IM-3UR38X
Signal processor for non-Ex flow sensors from the FC….-NA… family; operating voltage 20…250 VAC; LED bar for displaying flow speed and medium temperature; IO-Link device with transistor outputs for flow, temperature and errors |
7525102 |
|
FM-IM-2UPLI63X
Signal processor for non-Ex flow sensors from the FC….-NA… family; operating voltage 20…30 VDC; LED bar for displaying flow speed and medium temperature; IO-Link device with analog output for flow and transistor outputs for temperature and errors |
7525104 |
