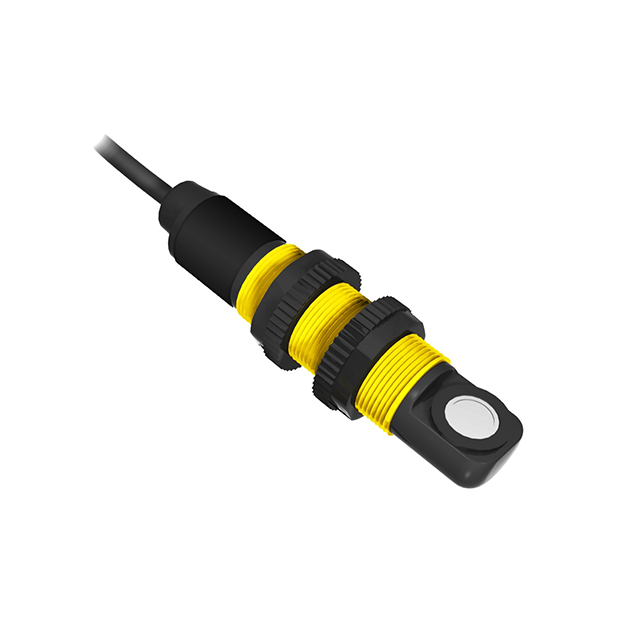

Product S18UIAR
Ultrasonic Sensor
diffuse mode sensor
With Analog Output
Order number: 3002708Alternative order number : 02708
- Compact design
- Cable, 2 m
- Temperature compensation
- Very small blind zone
- Measuring range adjustable via teach-in
- Blind zone: 3 cm
- Range: 30 cm
General data
| EAN | 662488027087 |
| eCl@ss-Code (V5.1.4): | 27272803 -/- Ultrasonic proximity switch |
| Customs tariff number | 85365019000 |
| Country of origin | CN |
| Weight | 188 g |
Technical Data
| Function | Proximity switch |
| Operating mode | Time-of-Flight |
| Design | Right Angled Barrel |

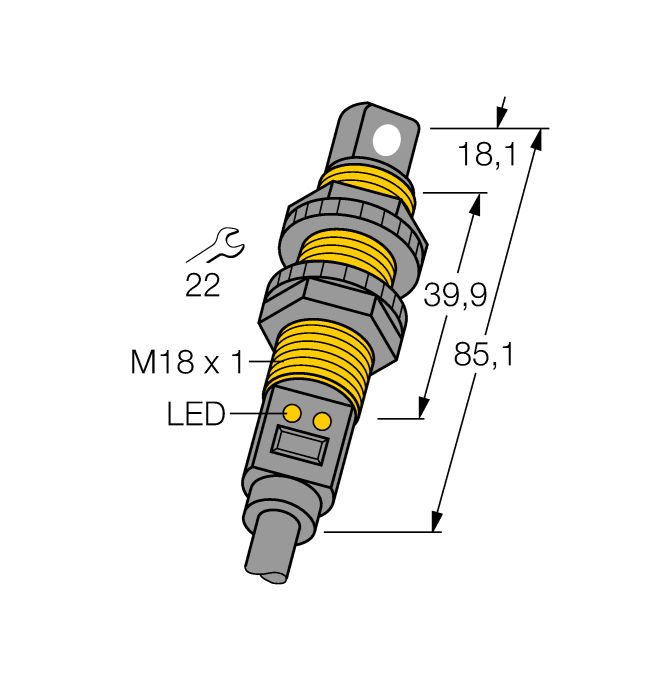

| Construction size | M18 x 1 |
| Radiation direction | side |
| Range | 30…300 mm |
| Operating voltage | 10…30 VDC |
| Output function | Analog output |
| Current output | 4…20 mA |
| Electrical connection | Cable |
| Cable length | 2.0 m |
| Housing material | Plastic, ABS/Polycarbonate |
| Ambient temperature | -20…+60 °C |
| Protection class | IP67 |
| Special features | Clear object detection |
