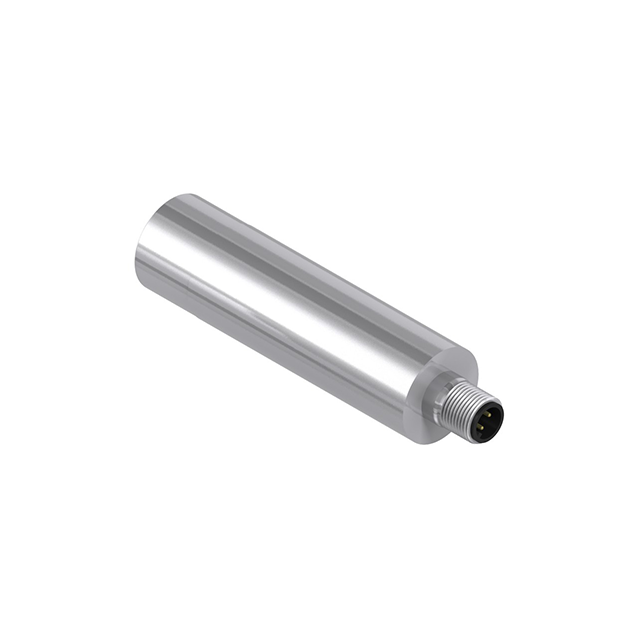

Product M25URBQ8
Ultrasonic Sensor
receiver
With Switching Output
Order number: 3079746Alternative order number : 79746
- Sonic transducer face and sleeve made of V4A 1.4401 (AISI 316)
- Max. range 50 cm
- Protection class IP68 / IP69K, fully encapsulated with housing cover made of polysulphone
- Suitable for 200,000 cleaning cycles with water at 85°C for a duration of 15 min and subsequent fast cooling
- Operating voltage 10…30 VDC
- Switching output PNP/NPN, NO contact
- M12 × 1 male, 5-pin
- Programmable high and low sensitivity
General data
| EAN | 662488797461 |
| eCl@ss-Code (V5.1.4): | 27272801 -/- Ultrasonic opposed mode sensor |
| Customs tariff number | 85365019000 |
| Country of origin | US |
| Weight | 158.76 g |
Technical Data
| Function | Opposed mode sensor |
| Operating mode | Receiver |
| Design | Tube |

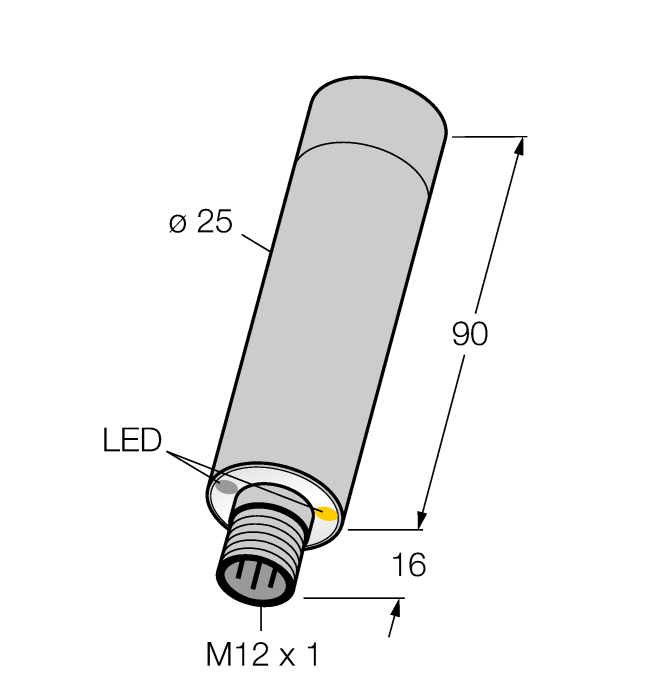

| Construction size | Ø 25 mm |
| Radiation direction | straight |
| Range | 0…500 mm |
| Operating voltage | 10…30 VDC |
| Switching element function | NO contact |
| Output function | PNP/NPN |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Metal, Stainless steel |
| Ambient temperature | -20…+70 °C |
| Protection class | IP67/IP69 |
| Special features | Chemical-resistant, Clear object detection, Resistant to chemicals |
Connectivity accessories
|
RKH4.5-2/TFG
Connection cable, M12 female connector, straight, 5-pin, stainless steel coupling nut, cable length: 2 m, jacket material: TPE, gray; temperature range: -40…+105 °C |
6933455 |
|
WKH4.5-2/TFG
Connection cable, M12 female connector, angled, 5-pin, stainless steel coupling nut, cable length: 2 m, jacket material: TPE, gray; temperature range: -40…+105 °C |
6933548 |
