Product CABLE-BLIDENT-2M/S2500
RFID Cable Standard Version
Connection Cable
Order number: 100019079- 4‐wire, AWG 24/AWG 22
- Jacket material: PUR, color: yellow
- Free from halogen and LABS
- Shielding: aluminum foil, tinned copper wire
- Jacket diameter: 6.9 mm
- Suitable for drag chain use, oil resistant, highly flexible
- Cable UL Style 20549

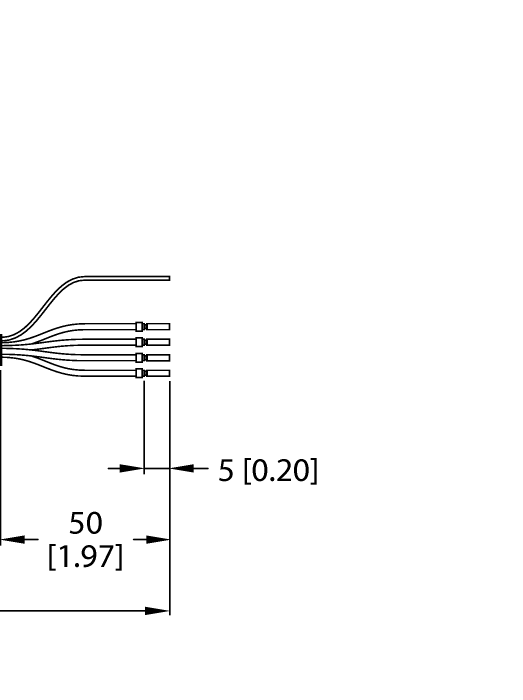

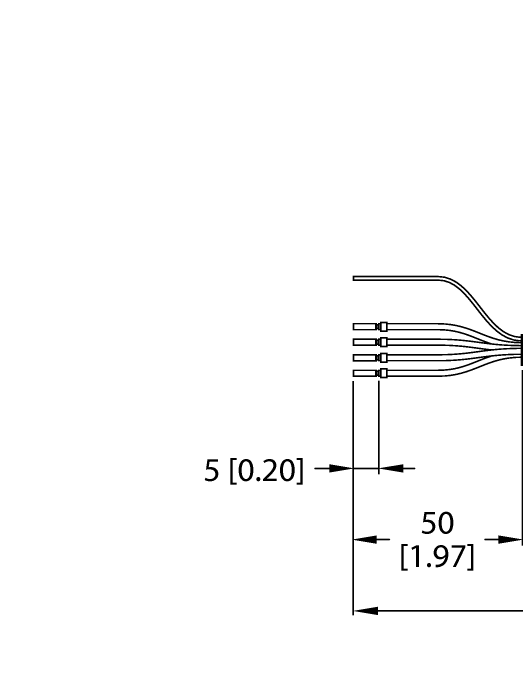

- End open
- Open end
- Cable length: 2.0 m
General data
| EAN | 4047101524819 |
| eCl@ss-Code (V5.1.4): | 27060307 -/- Bus cable |
| Customs tariff number | 85444290900 |
| Country of origin | PL |
| Weight | 1 g |
Technical Data
| Application | RFID |
| Number of Conductors | 4 |
| Core cross-section | 0.25 mm² |
| Cable diameter | Ø 6.9 mm |
| Cable length | 2.0 m |
| Cable jacket | PUR, Yellow |
| Shielding | yes |
| Approvals | Cable UL Style 20549 |
