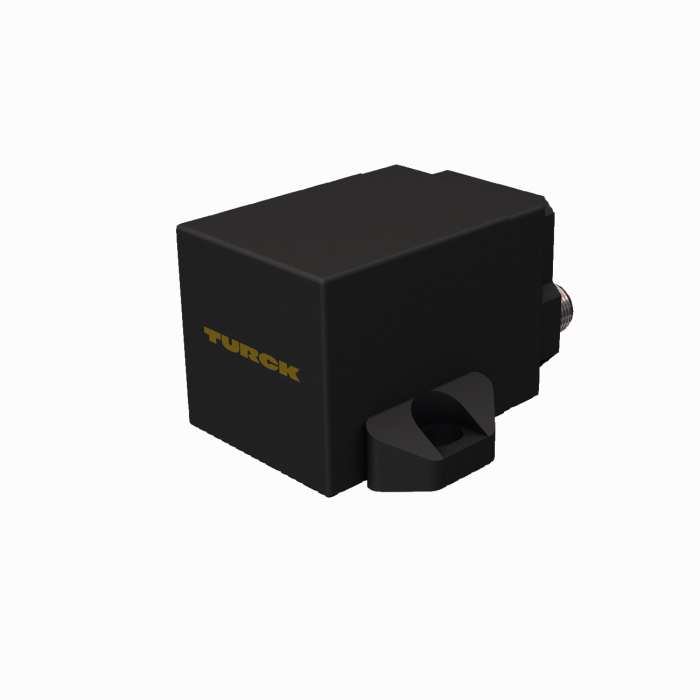

Produkt TNSLR-Q42TWD-H1147
Schreib-Lese-Kopf
Bestellnummer: 7030424- quaderförmig, Höhe 42,5mm
- aktive Fläche oben
- Kunststoff, PA12-GF30
Allgemeine Daten
EAN | 4047101261042 |
eCl@ss-Code (V5.1.4): | 27280401 -/- Identifikation RFID |
Warentarifnummer / Zolltarifnummer | 84719000000 |
Ursprungsland | DE |
Gewicht | 146 g |
Technische Daten
Technologie | HF (13,56 MHz) |
Funk- und Protokollstandards | ISO 15693, NFC Typ 5 |
Bauform | Quader |

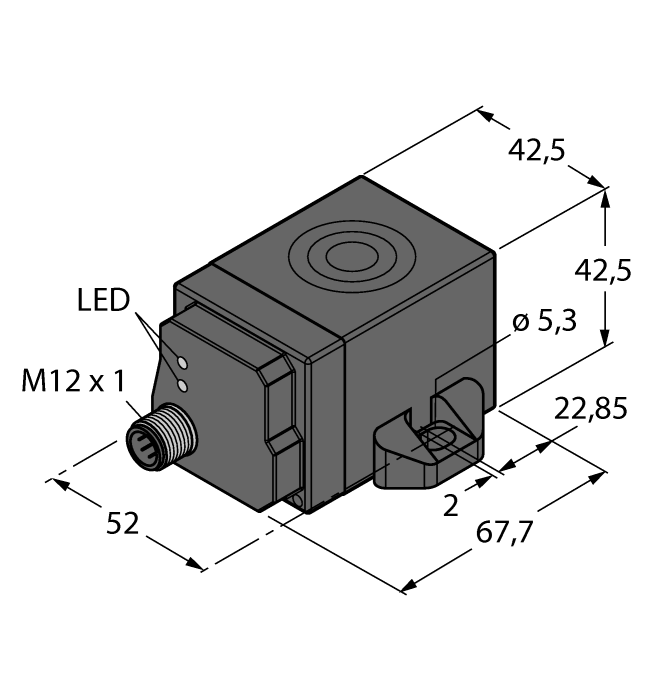

Baugrösse | 67.7 x 42.5 x 42.5 mm, Q42 |
Schreibleseabstand max. | 215 mm |
Einbaubedingungen | nicht bündig |
Netzwerkprotokoll | Anschluss an RFID-Interface |
Umgebungstemperatur | -25…+70 °C |
Schutzart | IP68 / IP69K |
