Produkt

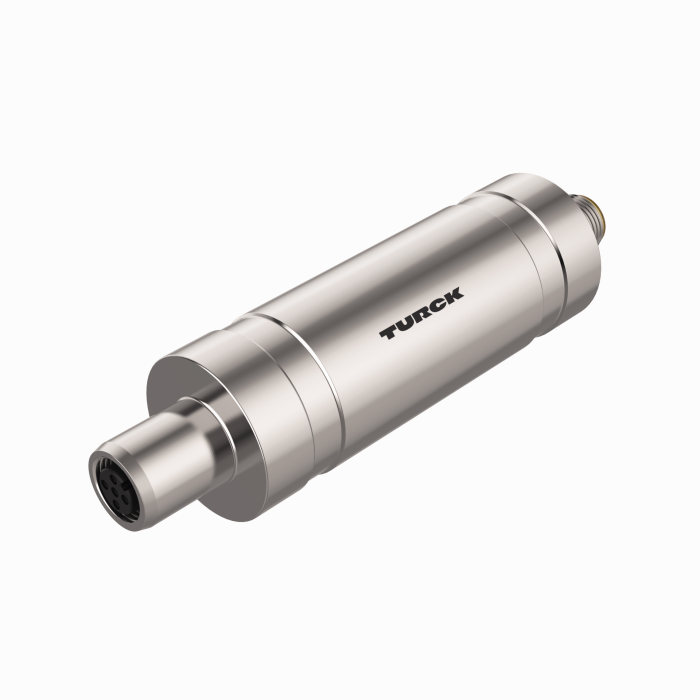

IOLR-EH30-H1151
IO-Link Repeater
Bestellnummer: 100038330
- glattes Rohr, 30 mm Durchmesser
- Edelstahl, 1.4404
- für Temperaturen von ‐25°C bis +65°C
- DC 5‐Draht, 18...30 VDC
- Steckverbinder, M12 x 1
- Kupplung, M12 x 1
- Keine Konfiguration oder IODD notwendig
- Verlängerung des IO-Link Signals um 20 m
- Mit max. 3 Repeatern Leitungslänge von bis zu 240 m (COM3: 200 m), genaue Angaben: siehe Handbuch
- IP68, IP69K
Allgemeine Daten
| EAN |
4047101593532 |
| Warentarifnummer / Zolltarifnummer |
85176200000 |
| Ursprungsland |
DE |
| Gewicht |
190 g |
Technische Daten
| Zubehörart |
Repeater |
| Baugrösse |

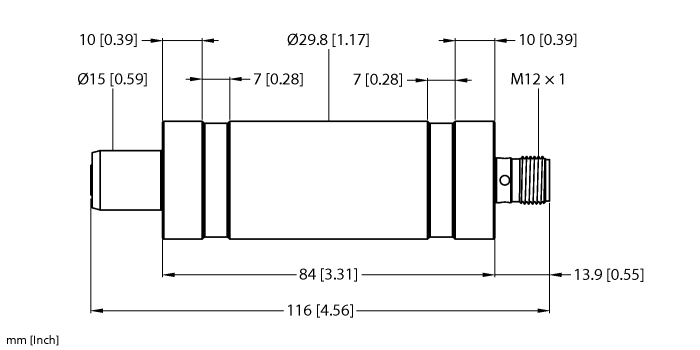

116 mm |
| Gehäusedurchmesser |
Ø 30 mm |
| Gehäusewerkstoff |
Edelstahl, 1.4404 (AISI 316L) |
| Umgebungstemperatur |
-25…+65 °C |
| Schutzart |
IP68/IP69K |
Datenblätter
Kurzbetriebsanleitung
