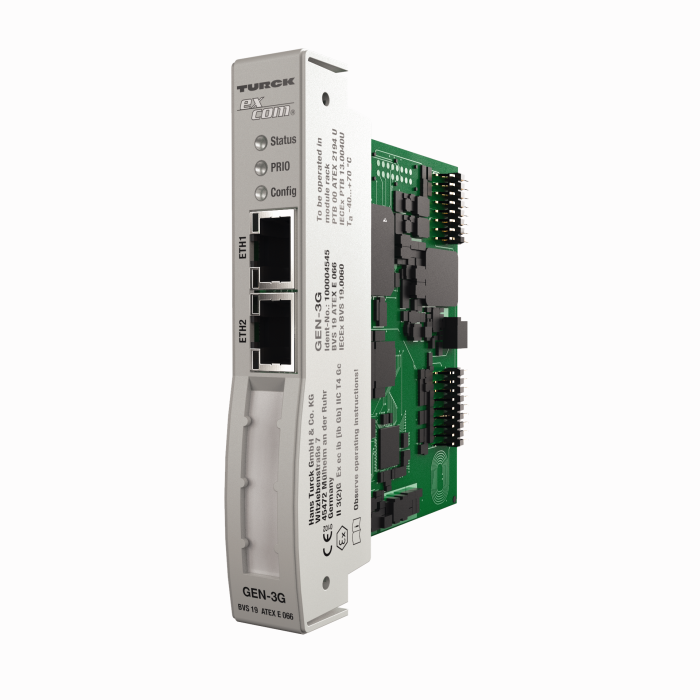

Produkt GEN-3G
I/O-System excom
Multiprotokoll Gateway für Ethernet
Bestellnummer: 100004545- Gateway für Ethernet Feldbus Komunikation
- Anschluss der excom-Station an den Ethernet Feldbus
- Unterstützung der Ethernet-Protokolle Modbus TCP, EtherNet/IP und PROFINET
- Integrierter Switch, 10/100 MBit/s
- Zwei RJ45-Steckverbinder zum Feldbusanschluss

Allgemeine Daten
EAN | 4047101501315 |
eCl@ss-Code (V5.1.4): | 27250312 -/- Kommunikationsinterface, aktiv |
Warentarifnummer / Zolltarifnummer | 85389099990 |
Ursprungsland | DE |
Gewicht | 128 g |
Technische Daten
Netzwerkprotokoll | EtherNet/IP, PROFINET, Modbus TCP |
Anschlusstechnik Signal | Schraubklemme, Federzugklemme |
Gerätetyp | Gateway |
Umgebungstemperatur | -40…+70 °C |
Schutzart | IP20 |
Zulassungen | ATEX, cFMus, cFM, IECEx, CCC, INMETRO, KOSHA, EAC Ex, UKCA, CE |
Datenblätter
deutsch | 391 KB |
englisch | 390 KB |
französisch | 392 KB |
spanisch | 392 KB |
tschechisch | 392 KB |
niederländisch | 390 KB |
rumänisch | 391 KB |
russisch | 414 KB |
polnisch | 391 KB |
chinesisch | 452 KB |
türkisch | 392 KB |
Firmware
Handbuch
Konfigurationsdatei
ETHERNET/IP CIP Bridging | 254 KB |
ETHERNET/IP Consolidated IO | 2791 KB |
GSDML-Dateien | 80 KB |
L5K file | 205 KB |
Konfigurationssoftware
Kurzbetriebsanleitung
Produktübersicht
Modulare I/O-Systeme und kompakte I/O-Module in IP20 und IP67 | 1556 KB |
Produkte und Lösungen zur effizienten Automation | 2182 KB |
excom I/O-System | 6467 KB |
Produktkatalog
Zulassung
Anschlusszubehör - Netzwerk
![]() |

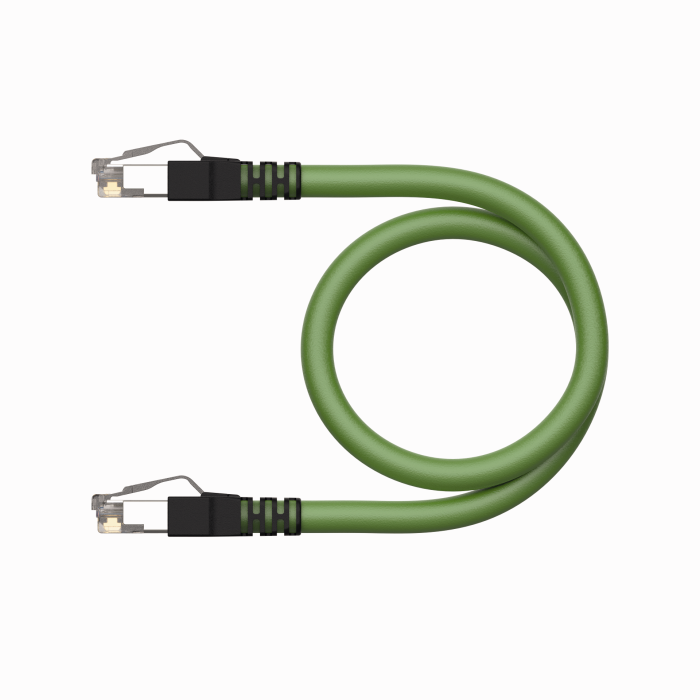

RJ45S-RJ45S-4422-2M | 6635218 |
