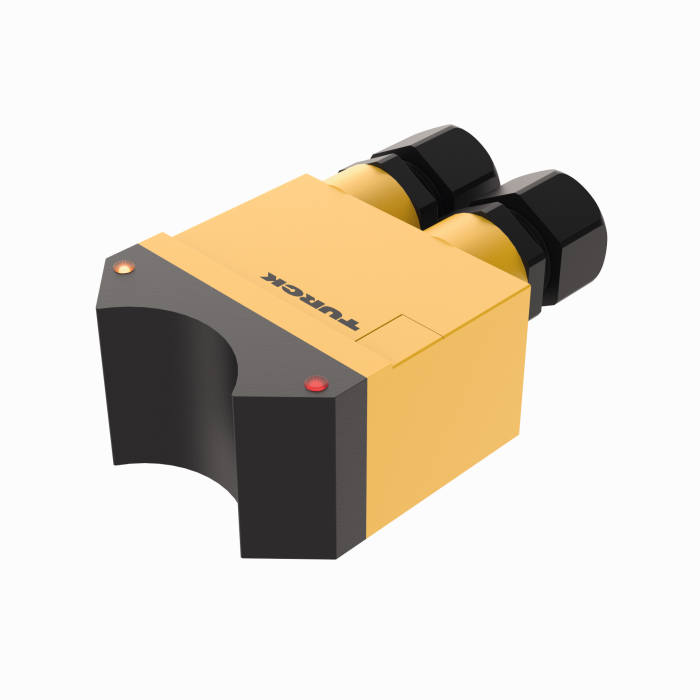

Produkt NI4-DSU35TC-2ADZ30X2
Induktiver Sensor
Doppelsensor für Schwenkantriebe
Bestellnummer: 4290002- quaderförmig, Bauform DSU35
- Kunststoff, PP‐GF30‐VO
- zwei Ausgänge zur Überwachung der Stellung von Schwenkantrieben
- Montage auf allen Normantrieben
- AC 4‐Draht, 20…250 VAC
- DC 4‐Draht, 10…300 VDC
- 2 x Schließer
- Klemmenraum

Allgemeine Daten
EAN | 4047101094480 |
eCl@ss-Code (V5.1.4): | 27270101 -/- induktive Näherungsschalter |
Warentarifnummer / Zolltarifnummer | 85365080000 |
Ursprungsland | DE |
Gewicht | 142 g |
Technische Daten
Bauform | Doppelsensor für Schwenkantriebe |

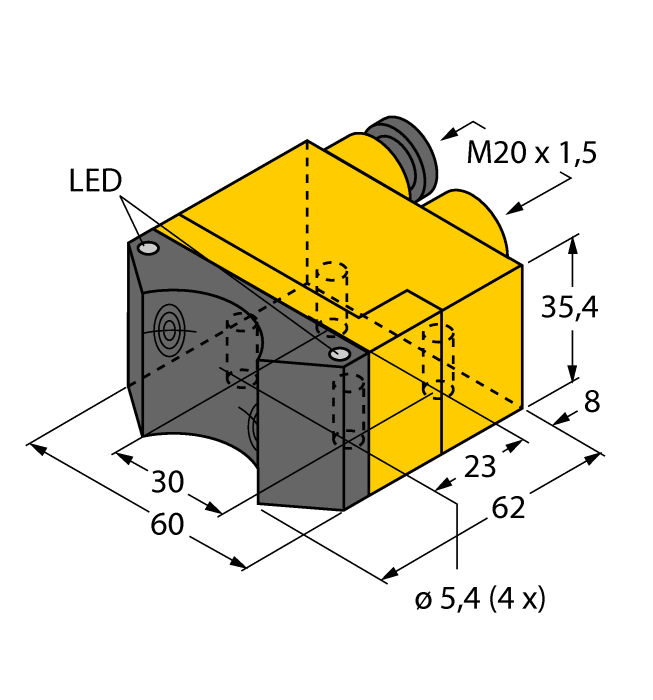

Baugrösse | 62 x 60 x 35.4 mm, DSU35 |
Bemessungsschaltabstand | 4 mm |
Einbaubedingungen | nicht bündig |
Betriebsspannung | 20…250 VAC / 10…300 VDC |
Ausgangsfunktion | 2 x Schließer, Zweidraht |
Schaltfrequenz | 0.020 kHz |
Elektrischer Anschluss | Klemmenraum |
Gehäusewerkstoff | Kunststoff, PP-GF30, gelb |
Umgebungstemperatur | -25…+70 °C |
Schutzart | IP67 |
Montagezubehör
![]() |

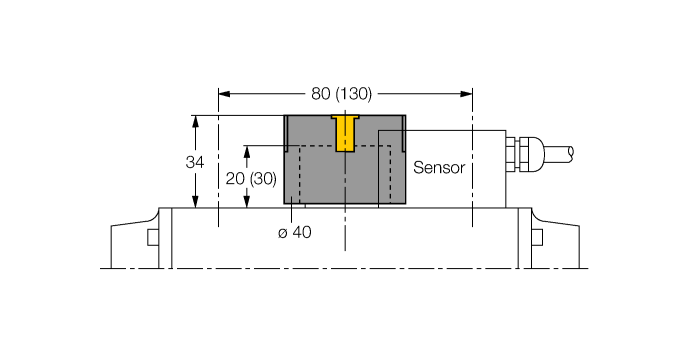

BTS-DSU35-EB1
Betätigungsset (Puck) für Doppelsensoren; Endlage bedämpft; Lochbild auf Flanschfläche: 80 x 30 mm und 130 x 30 mm; Anschlusswelle (Wellenzapfen) Höhe: 20 mm (30 mm) / Ø: max. 30 mm |
6900225 |
![]() |
BTS-DSU35-Z01
Aufbauset für Doppelsensoren für größere Schwenkantriebe; Ø Scheibe und Sprengring: max. 65 mm; Lochbild auf Flanschfläche: 30 x 80 mm (30 x 130 mm); Anschlusswelle (Wellenzapfen) Höhe: 20 mm / Ø: max. 30 mm |
6900229 |
![]() |
BTS-DSU35-Z02
Aufbauset für Doppelsensoren für größere Schwenkantriebe; Ø Scheibe und Sprengring: max. 65 mm; Lochbild auf Flanschfläche: 30 x 80 mm (30 x 130 mm); Anschlusswelle (Wellenzapfen) Höhe: 20 mm (30 mm) / Ø: max. 40 mm |
6900230 |
![]() |
BTS-DSU35-Z03
Aufbauset für Doppelsensoren für größere Schwenkantriebe; Ø Scheibe und Sprengring: max. 110 mm; Lochbild auf Flanschfläche: 30 x 130 mm; Anschlusswelle (Wellenzapfen) Höhe: 30 mm / Ø: max. 70 mm |
6900231 |
![]() |
BTS-DSU35-Z07
Aufbauset für Doppelsensoren für größere Schwenkantriebe; Ø Scheibe und Sprengring: max. 110 mm; Lochbild auf Flanschfläche: 30 x 130 mm; Anschlusswelle (Wellenzapfen) Höhe: 50 mm / Ø: max. 75 mm |
6900403 |
![]() |

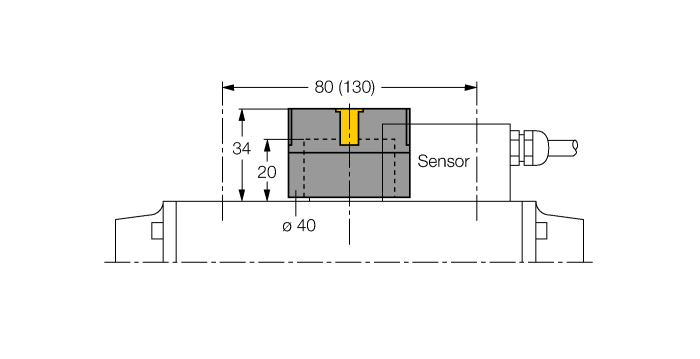

BTS-DSU35-EBE3
Betätigungsset (Puck) für Doppelsensoren; Endlage bedämpft; Auf- und Zu-Schaltpunkt einstellbar; Lochbild auf Flanschfläche: 80 x 30 mm und 130 x 30 mm; Anschlusswelle (Wellenzapfen) Höhe: 20 mm / Ø: max. 30 mm |
6901070 |
![]() |

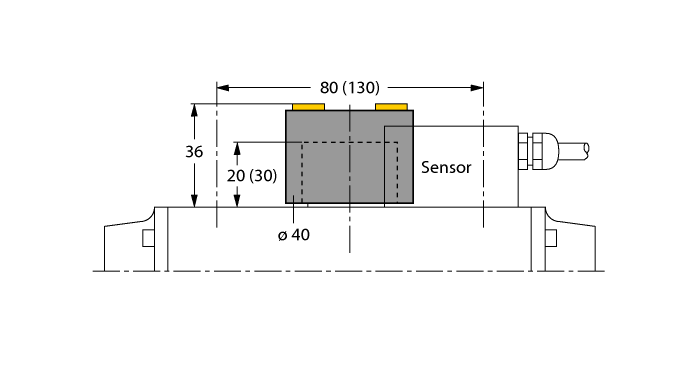

BTS-DSU35-EU2
Betätigungsset (Puck) für Doppelsensoren; Endlage unbedämpft für rechts- und linksdrehende Antriebe; Lochbild auf Flanschfläche 80 x 30 mm und 130 x 30 mm; Anschlusswelle (Wellenzapfen) Höhe 20 (30) / Ø max. 30 mm |
6900455 |
![]() |

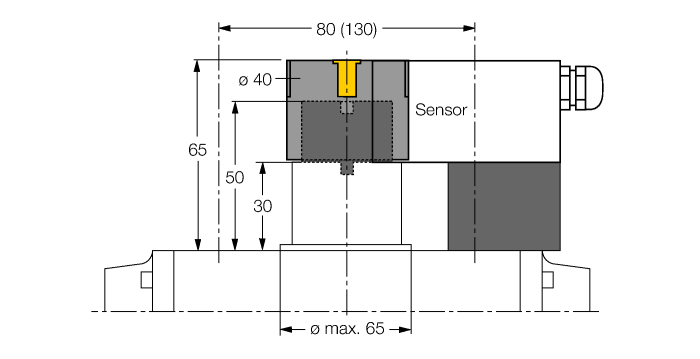

BTS-DSU35-Z06
Aufbauset für Doppelsensoren für größere Schwenkantriebe; Ø Scheibe und Sprengring: max. 65 mm; Lochbild auf Flanschfläche: 30 x 80 mm (30 x 130 mm); Anschlusswelle (Wellenzapfen) Höhe: 30 mm / Ø: max. 40 mm |
6900402 |
![]() |

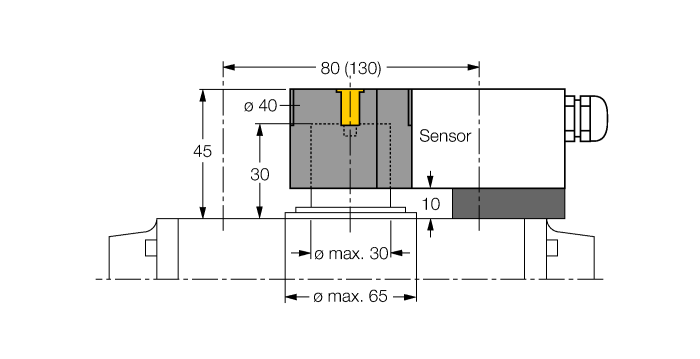

BTS-DSU35-Z04
Aufbauset für Doppelsensoren für größere Schwenkantriebe; Ø Scheibe und Sprengring: max. 65 mm; Lochbild auf Flanschfläche: 30 x 80 mm (30 x 130) mm; Anschlusswelle (Wellenzapfen) Höhe: 30 mm / Ø: max. 30 mm |
6900286 |
![]() |

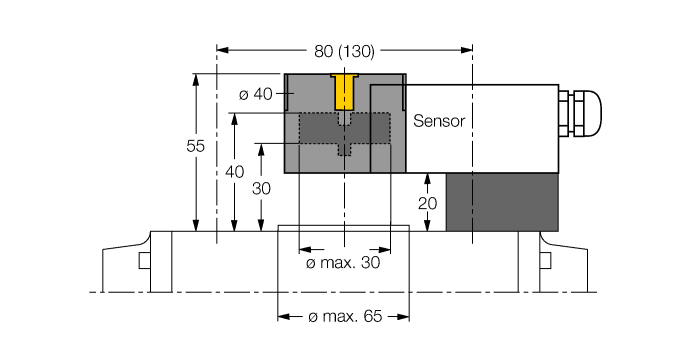

BTS-DSU35-Z05
Aufbauset für Doppelsensoren für größere Schwenkantriebe; Ø Scheibe und Sprengring: max. 65 mm; Lochbild auf Flanschfläche: 30 x 80 mm (30 x 130 mm); Anschlusswelle (Wellenzapfen) Höhe: 30 mm / Ø: max. 30 mm |
6900287 |
